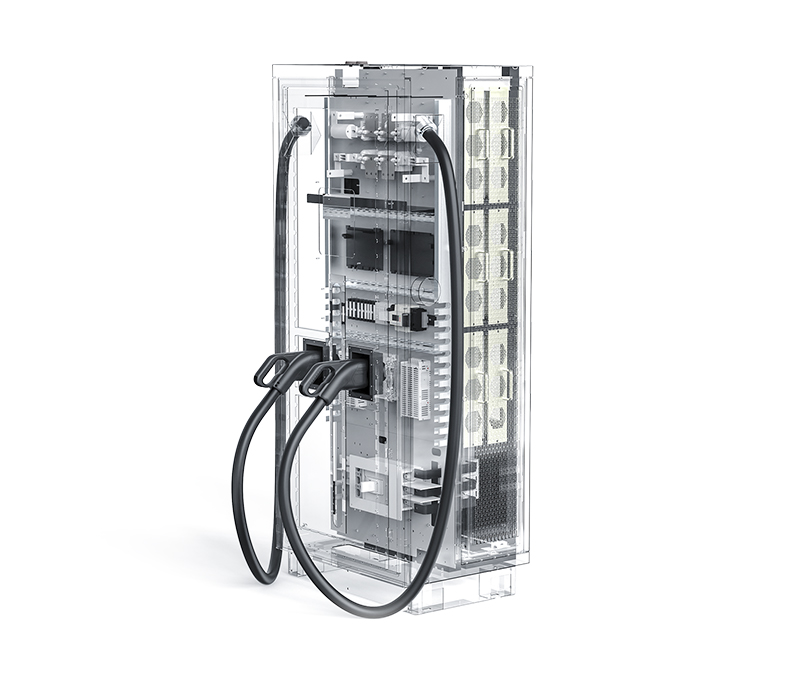

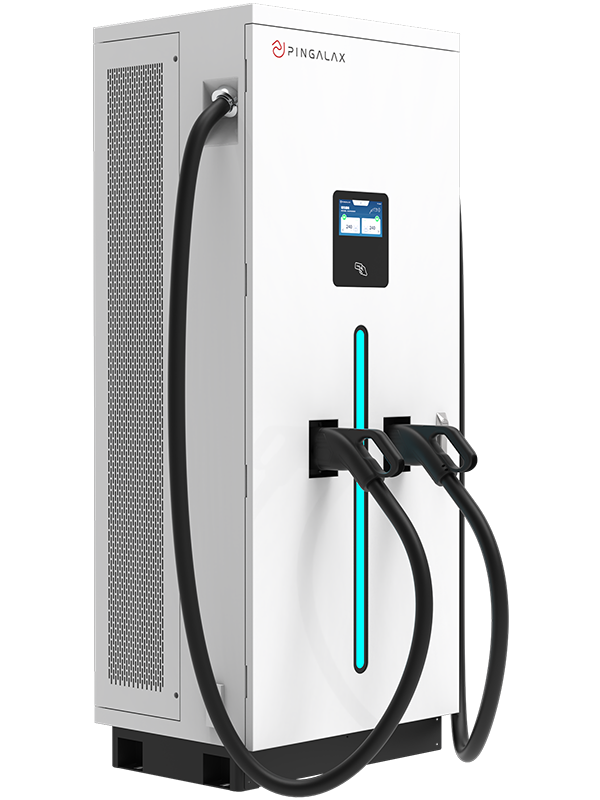

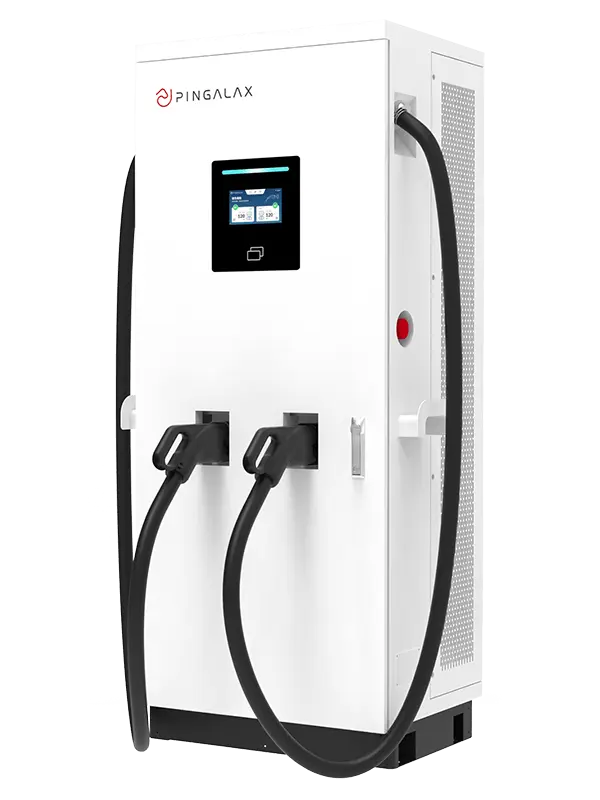

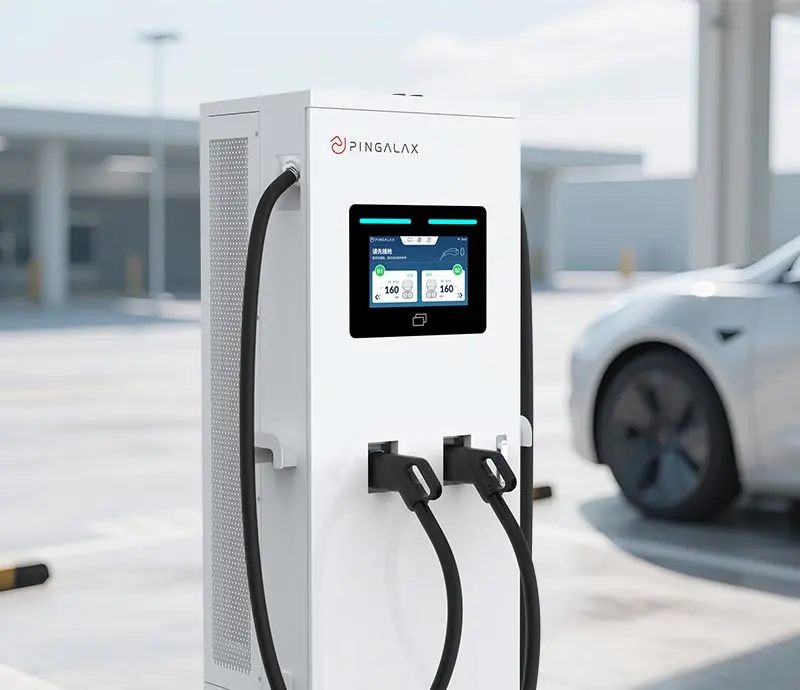

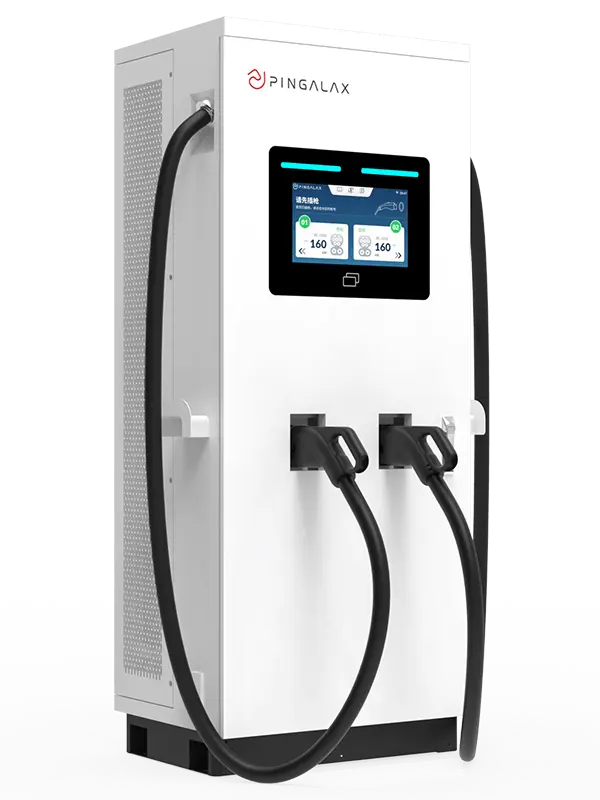

This product features a tri-chamber structure design that saves space in the enclosure. lt offers fast charging speed, with a peak charging efficiency of up to 96%, saving charging costs. Additionally, it provides modular operation management support, reducing the operating costs of the station.
120-240kw
0-250A
5m Cable
7
IP54，IK10

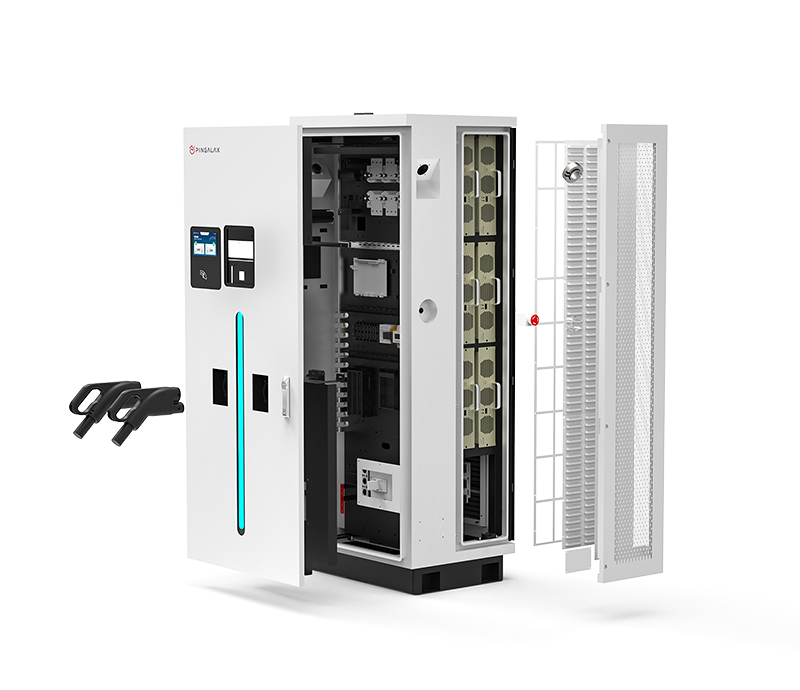

self-developed power modules
GB/T, CCS2 and Mixed Connector

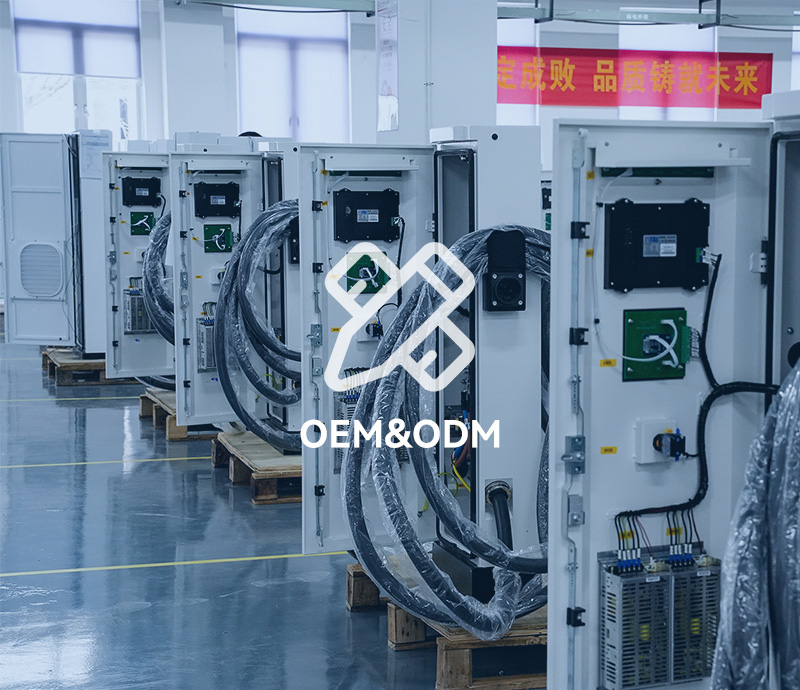

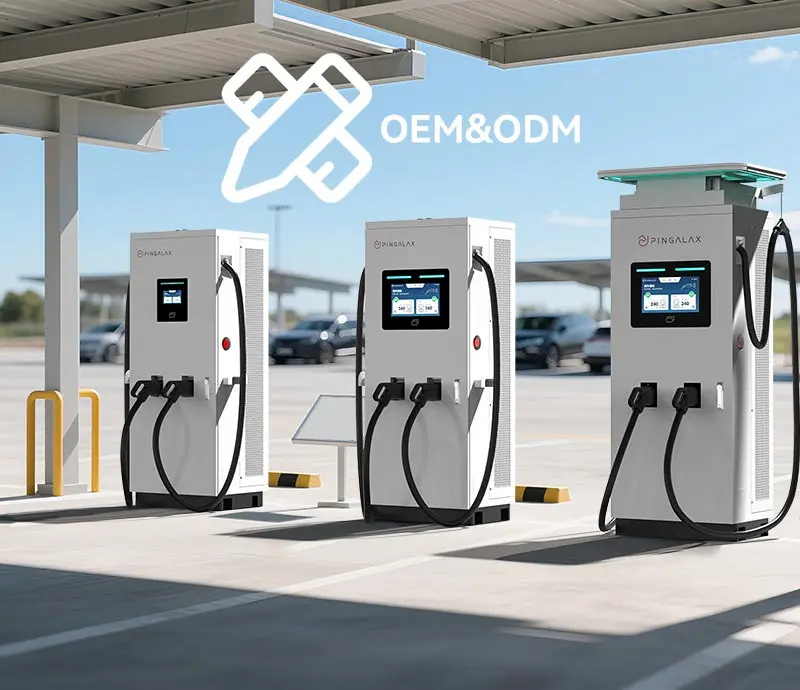

OEM & ODM Customization

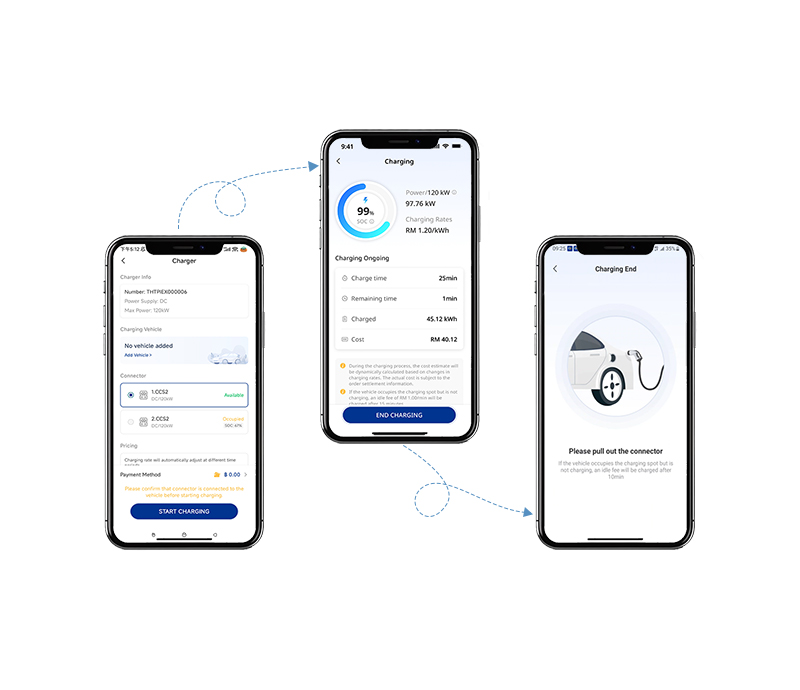

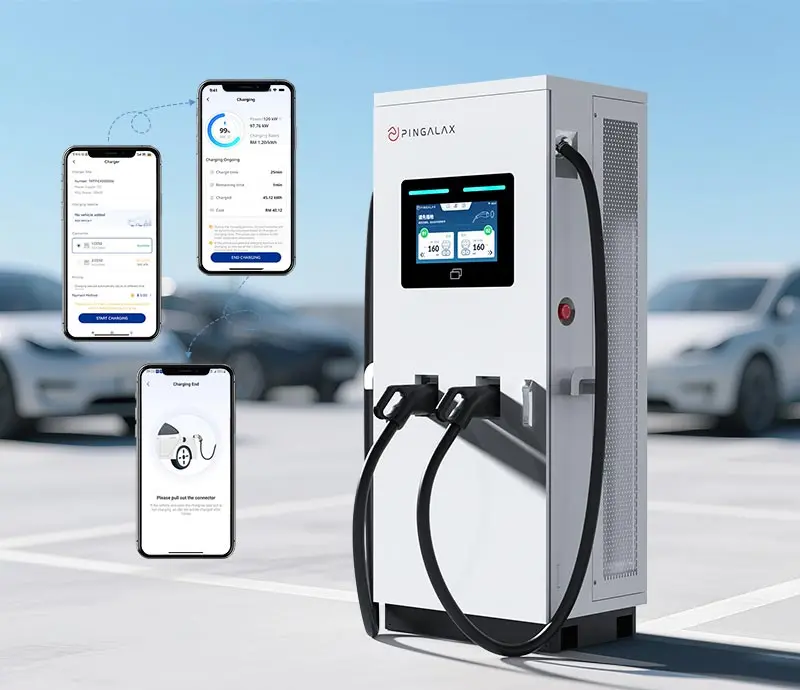

El Charge App for Payment
Efficient Cooling
Multi-layered Safety Mechanism
| Product Information | ||||||

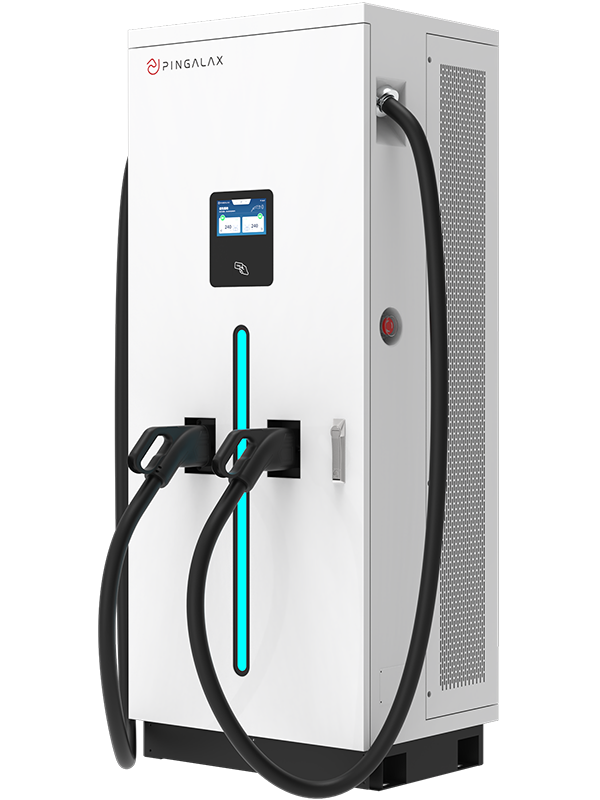

| Product Name | S120 | S160 | S240 | S320 | S400 | S480 |
| Power Rating | 120kW | 160kW | 240kW | 320kW | 400kW | 180kW |
Dimensions(w*d*h) | 730mm*550mm*1800mm | 800mm*700mm*1900mm | ||||
| Mounting Options | Pedestal Type | |||||
| Efficiency | >=95% | |||||
| ower Cooling | Forced-air-cooled | |||||
| Charging Port | GB/T,CCS2 and Mixed Connector | |||||
| Cable Length | 5m | |||||
| Input Characteristics | |||
| Input Voltage | GB: 3-phase 380VAC±15%, IEC: 3-phase 400VAC±10% | ||
| Input Frequency | 50/60H | ||
| Power Factor | >=0.99(at loads above 50%) | ||
| Output Characteristics | |||
| Output Current | 0-250A | 0-300A | |
| Output Voltage | 200~1000VDC | ||

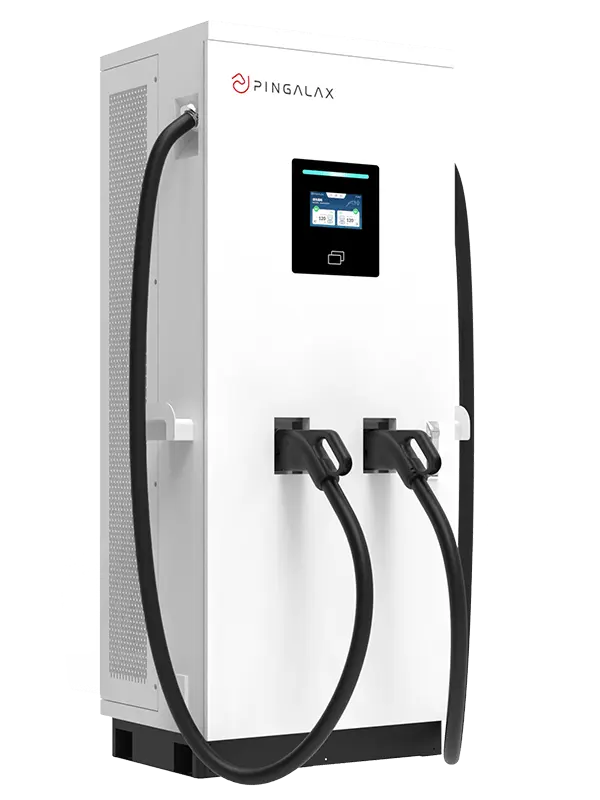

60/80kw
0-250A
5m Cable
7 Touch
IP54，IK10
OTA Upgrading
IP54
20~40kW
TUV CE
OCPP2.0.1
800kw MaxPower
≥95% Efficiency
600A
12 Max Number of Dispensers
IP65
320-800kw
600A
IP65

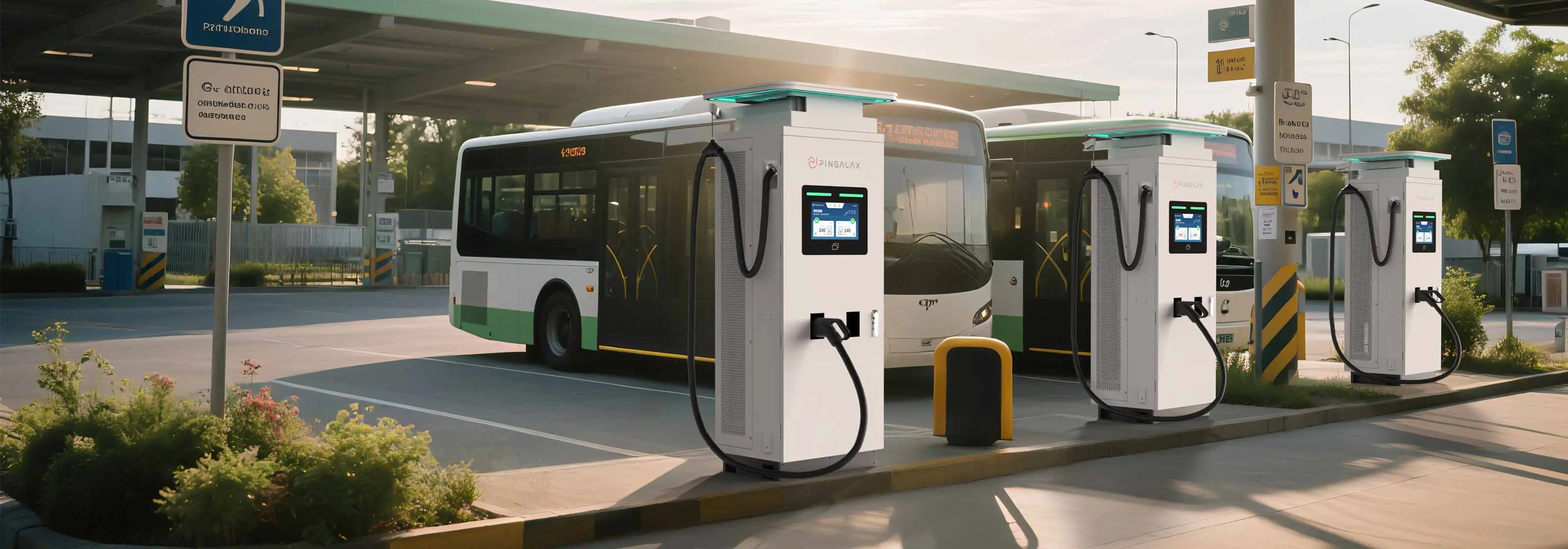

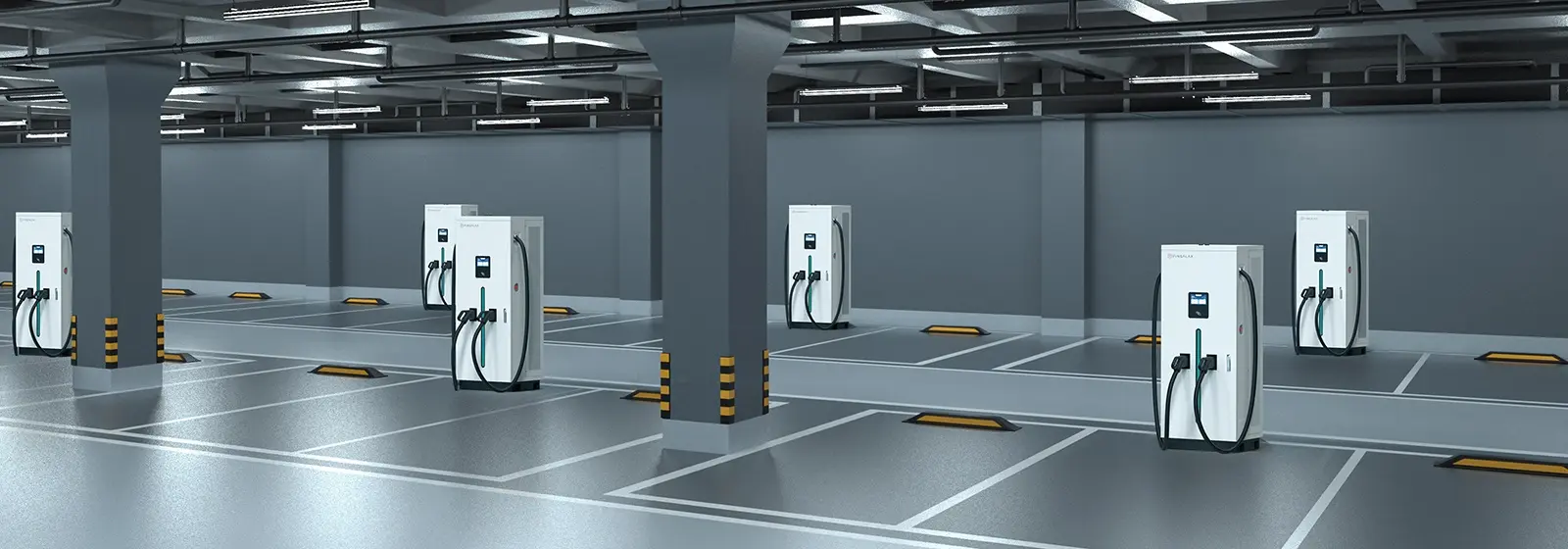

Public Charging

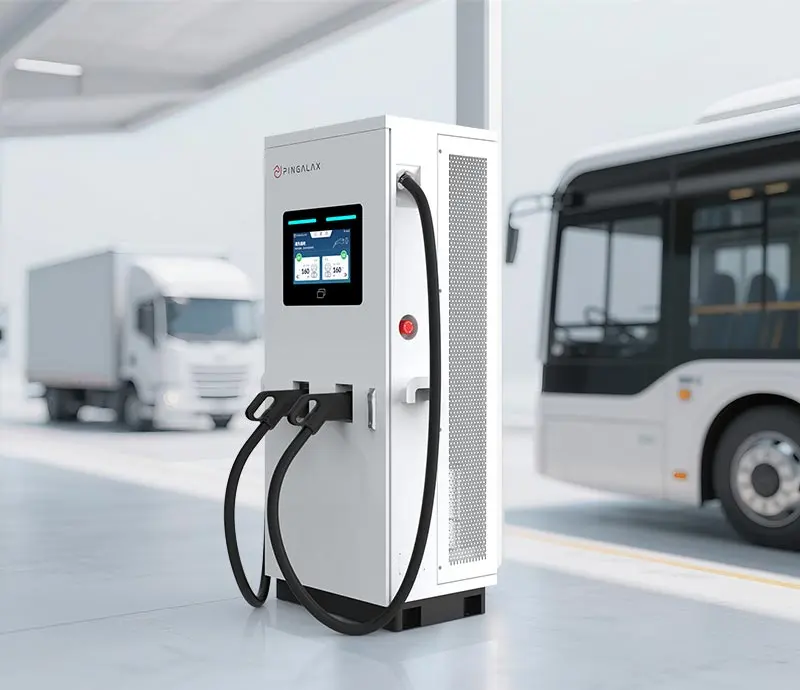

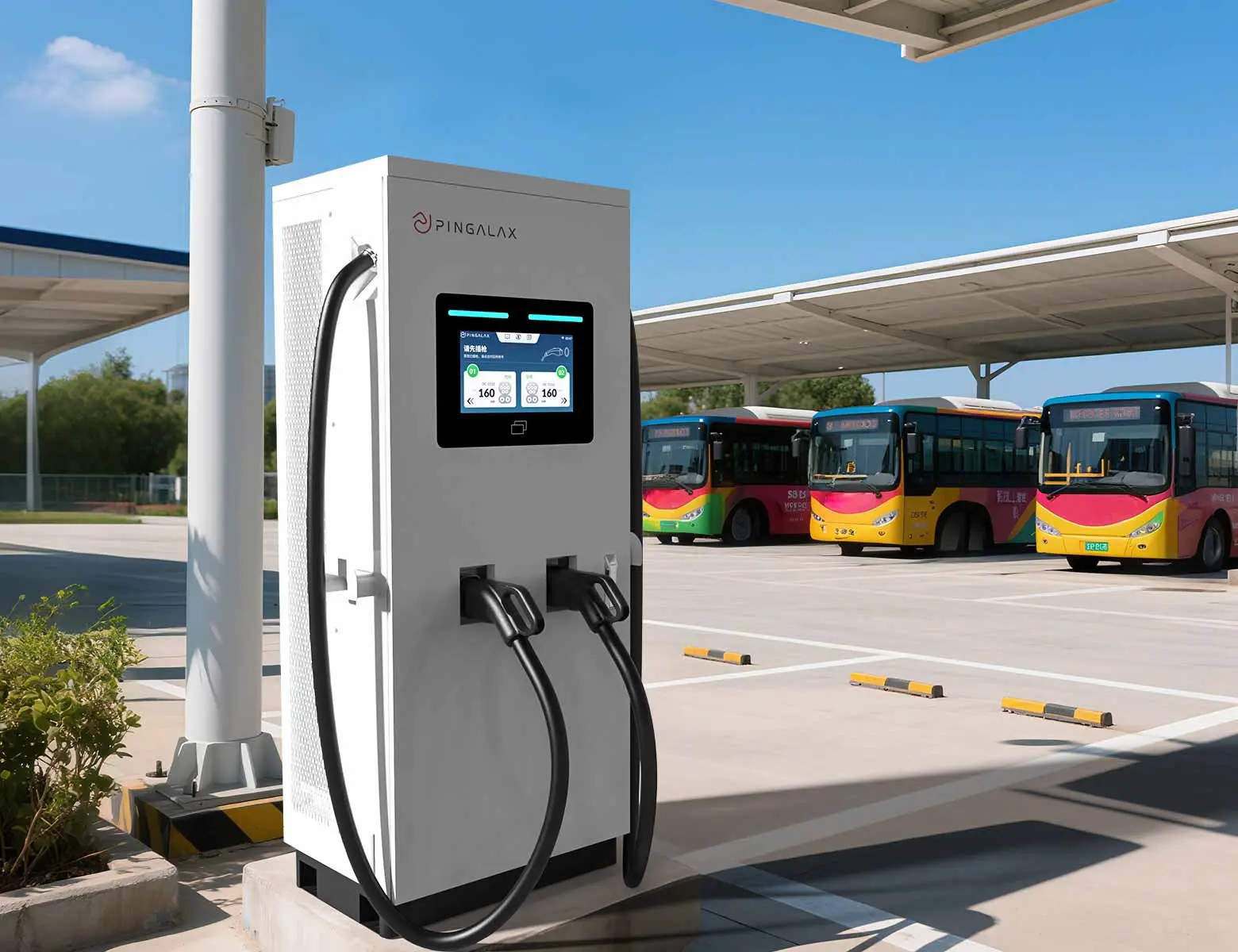

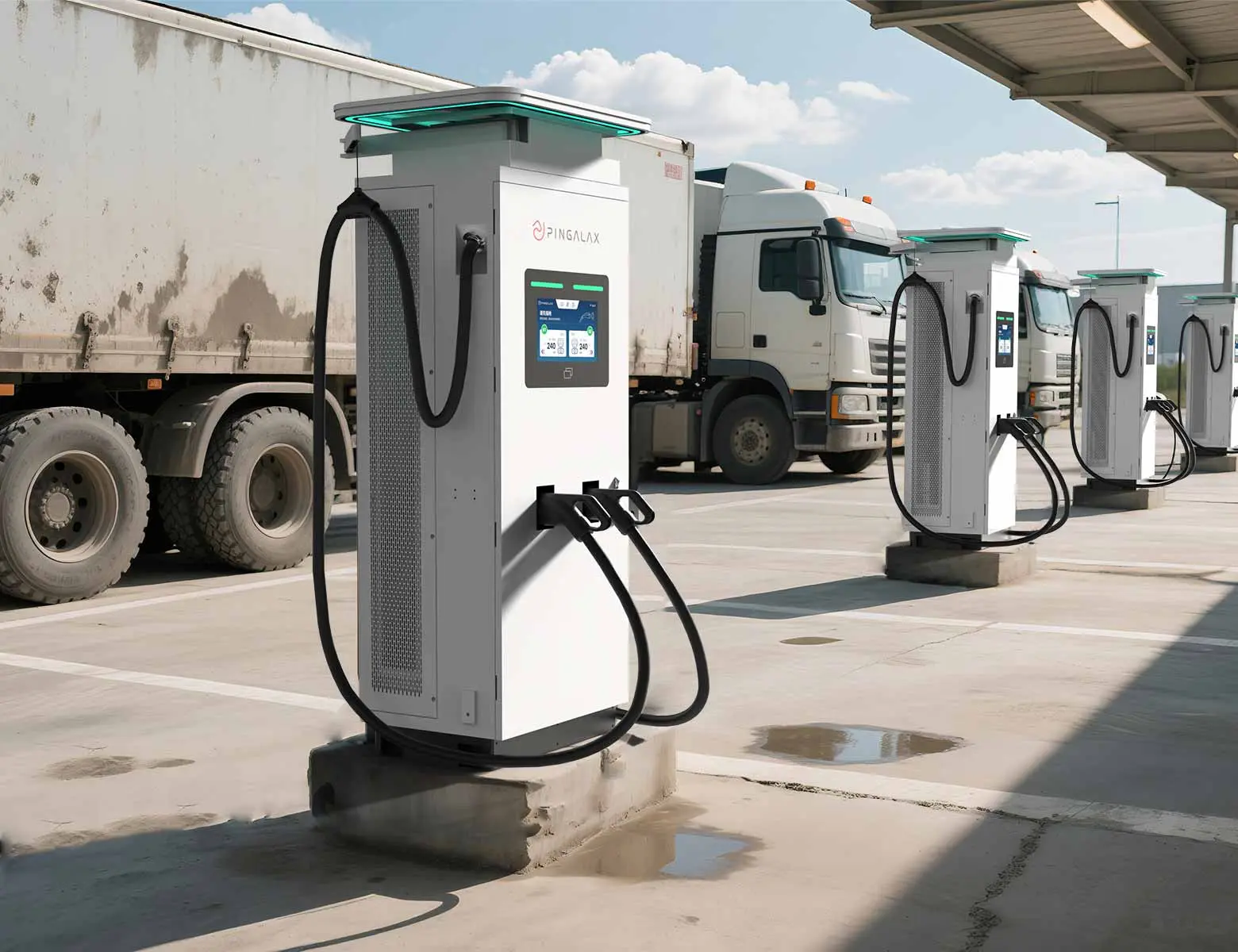

Fleet Operating
