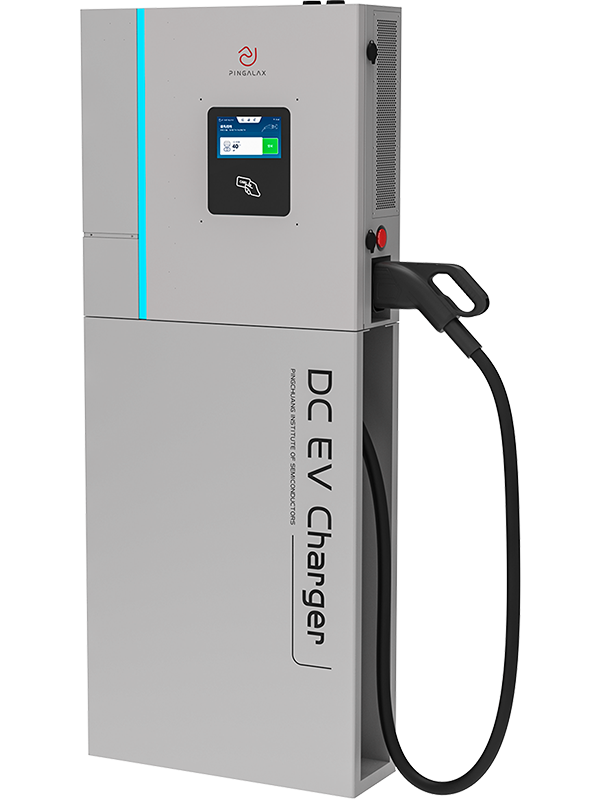

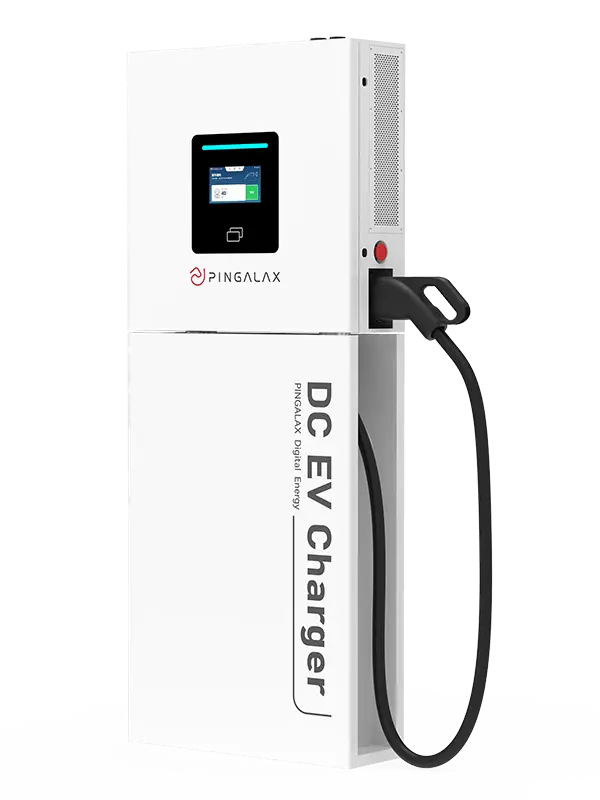

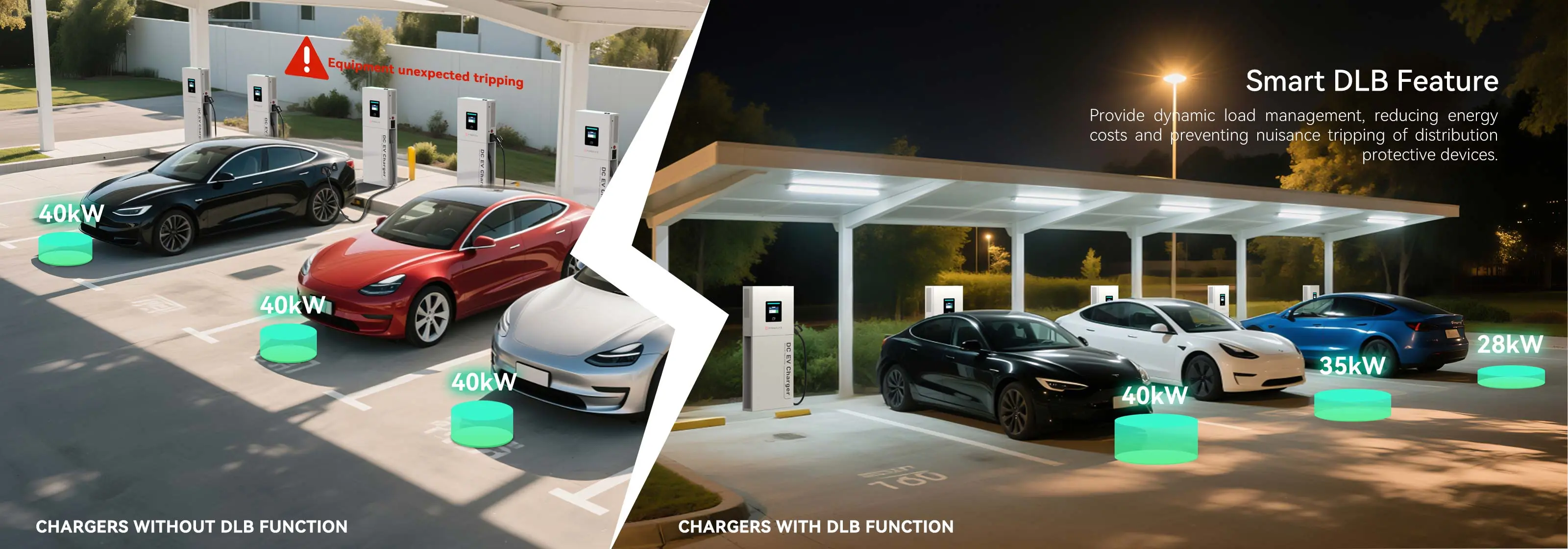

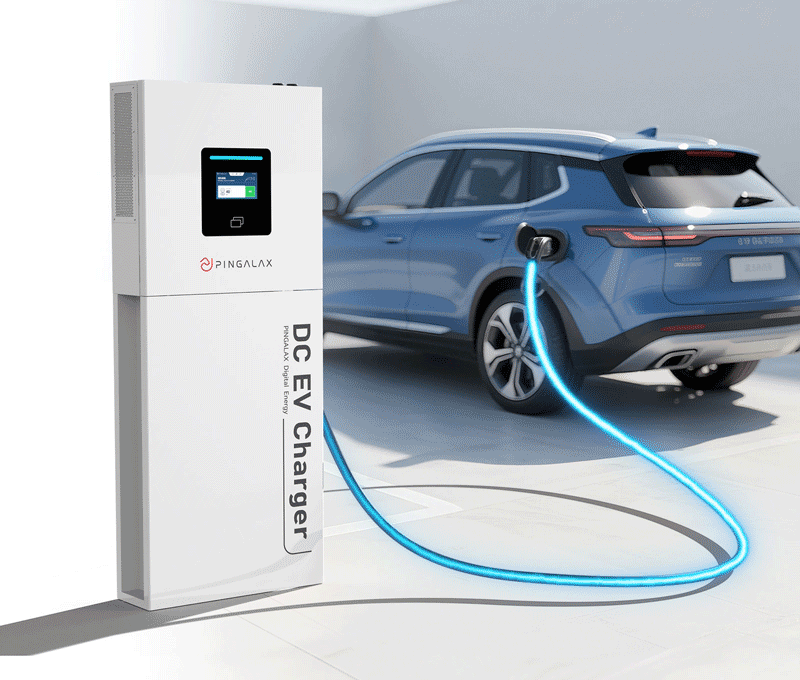

DC EV Charging Station PINGALAX Mini Series 20-40kW, OTA Upgrading , Smart DLB feature, IP54
OTA Upgrading
IP54
20~40kW
TUV CE
OCPP2.0.1

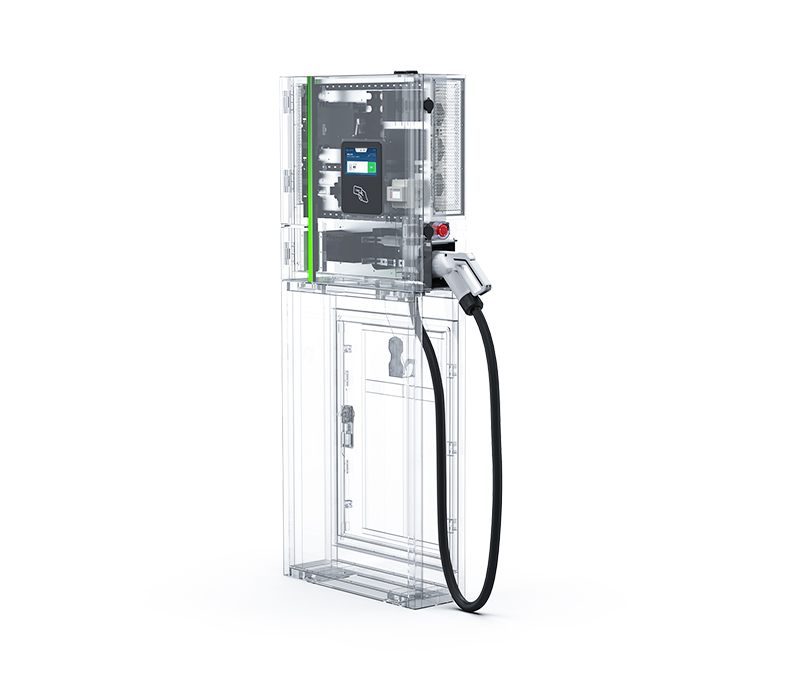

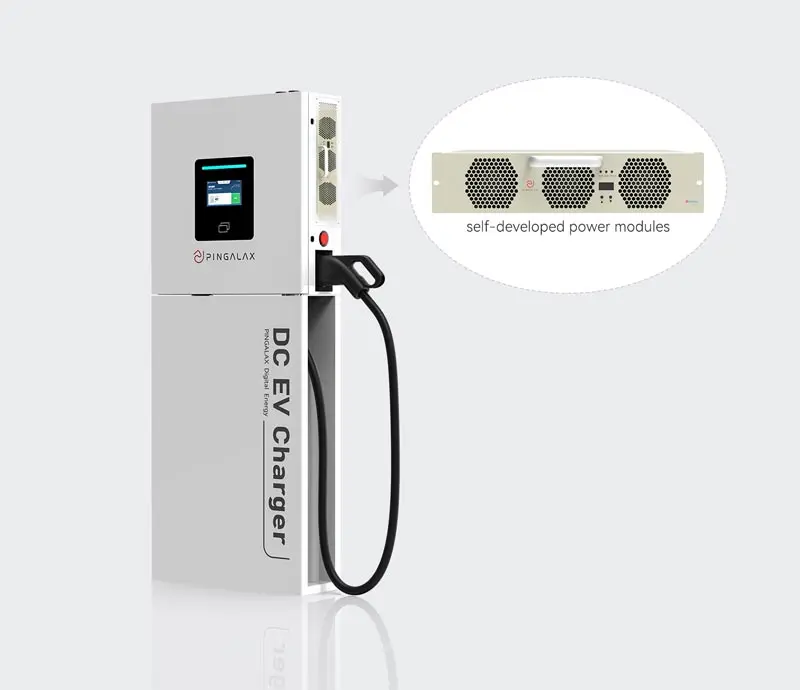

In-house Power Modules

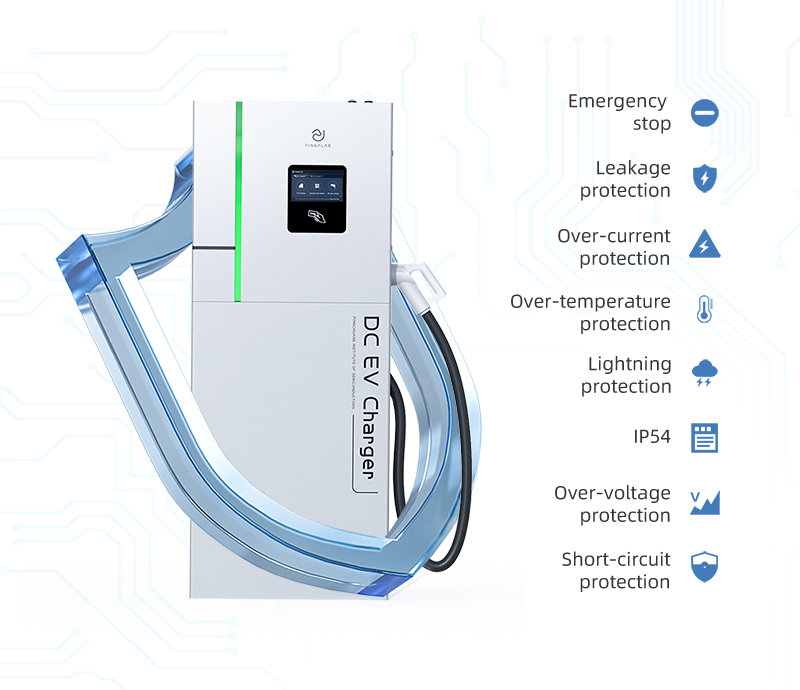

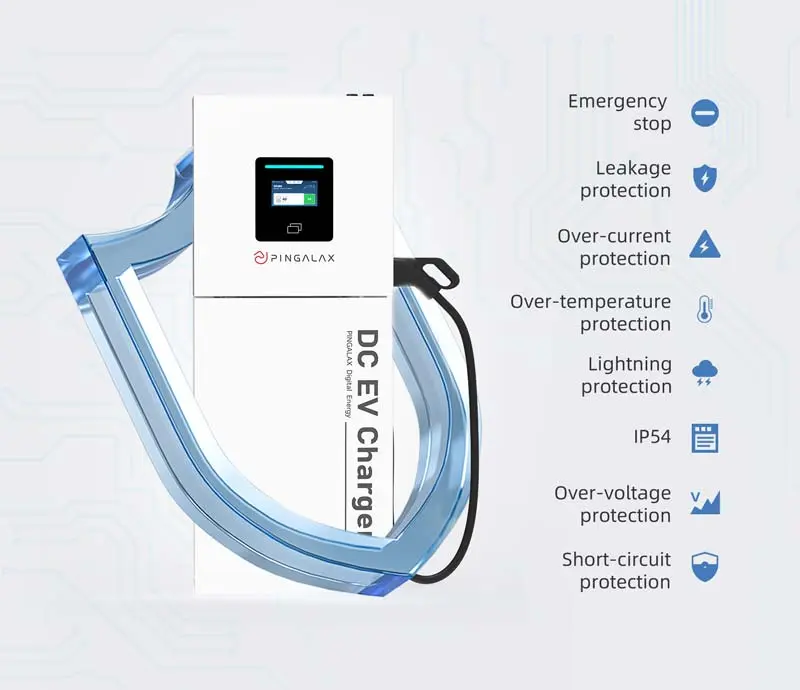

Multi-layered Safety Mechanism
OEM & ODM Customization

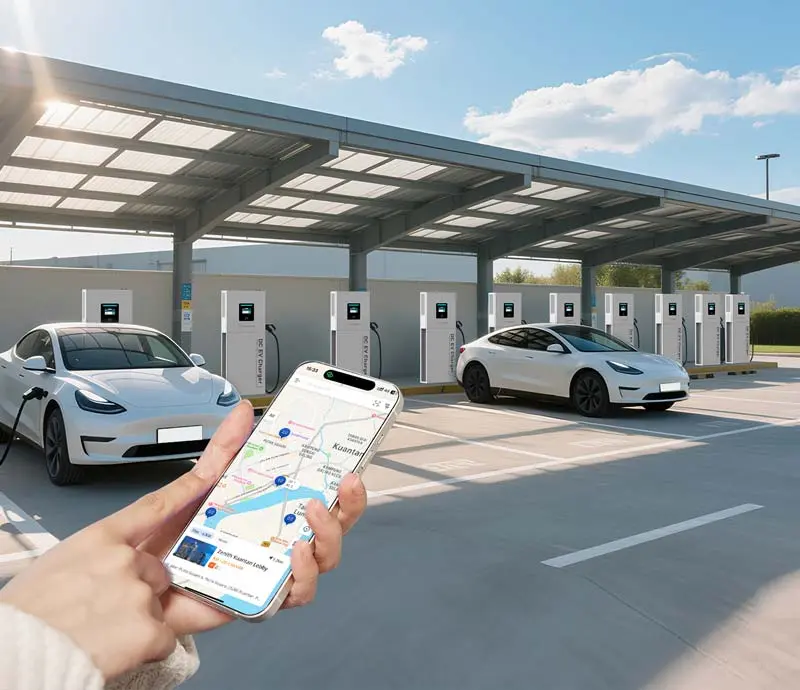

El Charge App for Payment
Optimal Performance and Efficiency

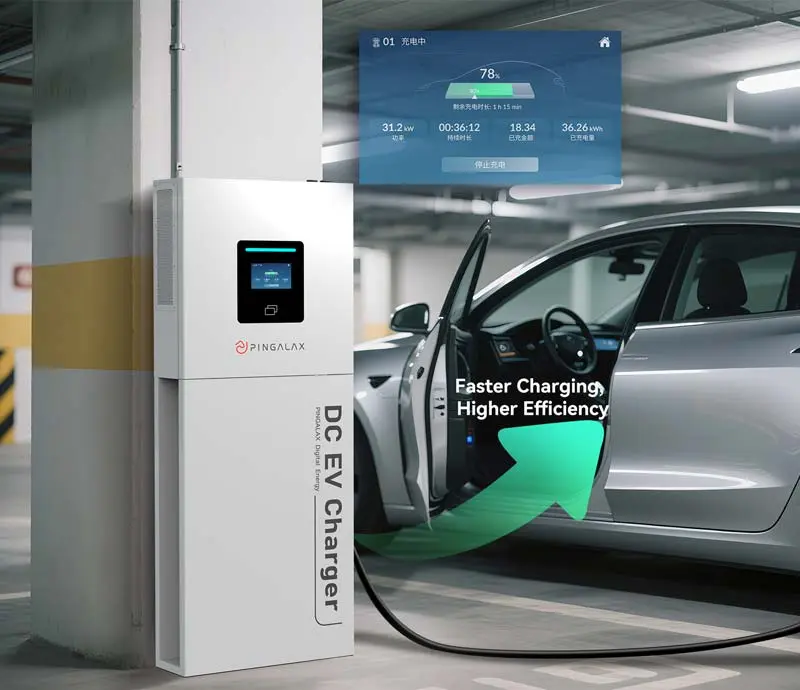

The user-friendly 7-inch LCD touch screen dynamically displays charging status.

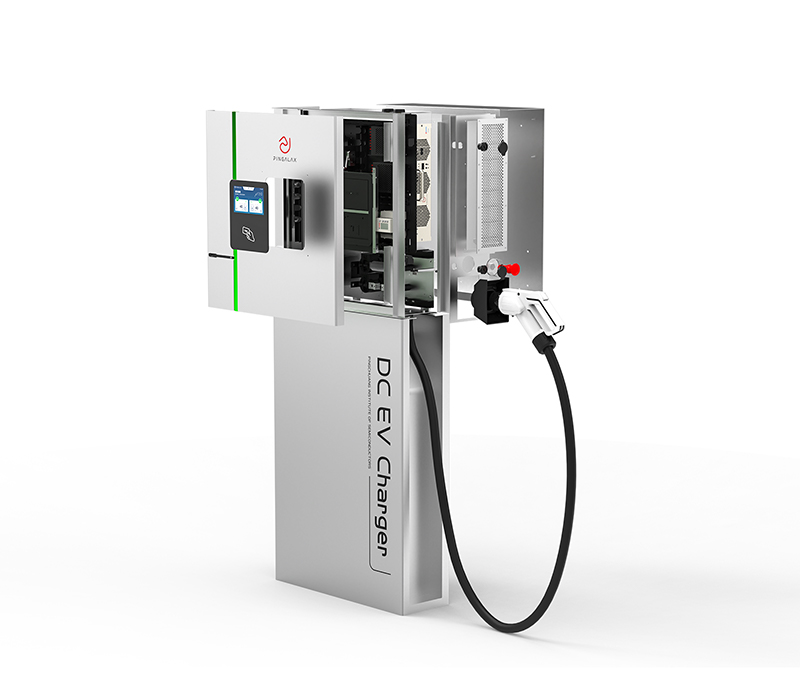

Active heat dissipation and intelli-gent temperature control
| Product Information | |||
| Product Name | M20 | M30 | M40 |
| Product Model | PDS0020M-CN | PDS0030M-CN/EU | PDS0040M-CN/EU |
| Power Rating | 20kW | 30kW | 40kW |
| Dimensions (W × D × H) | 670mm × 217.7mm × 670mm | ||

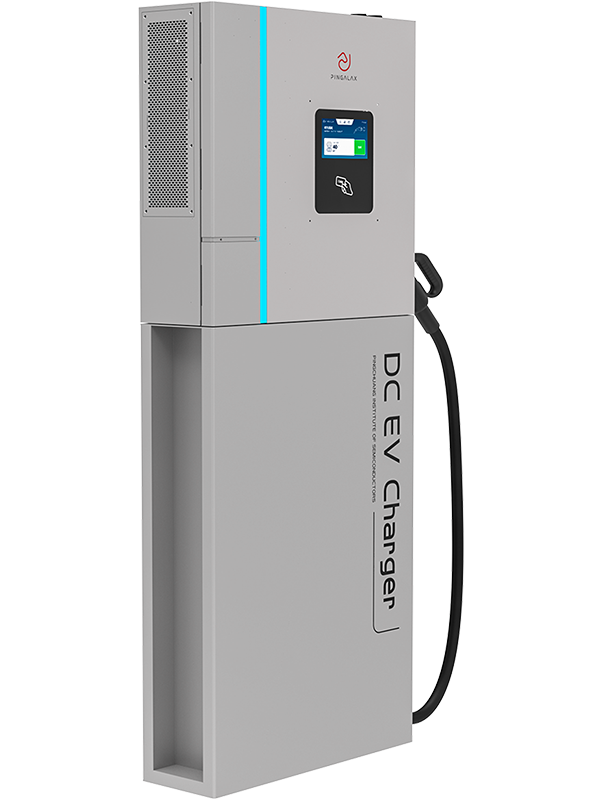

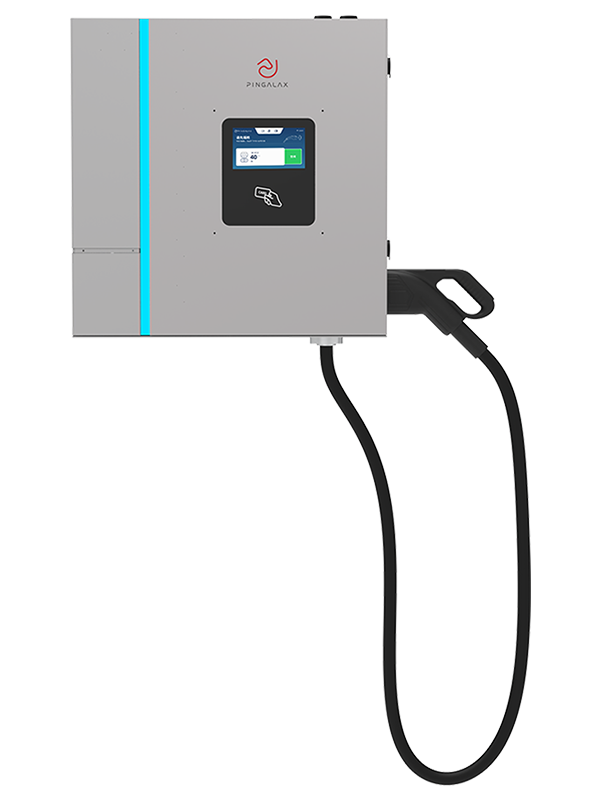

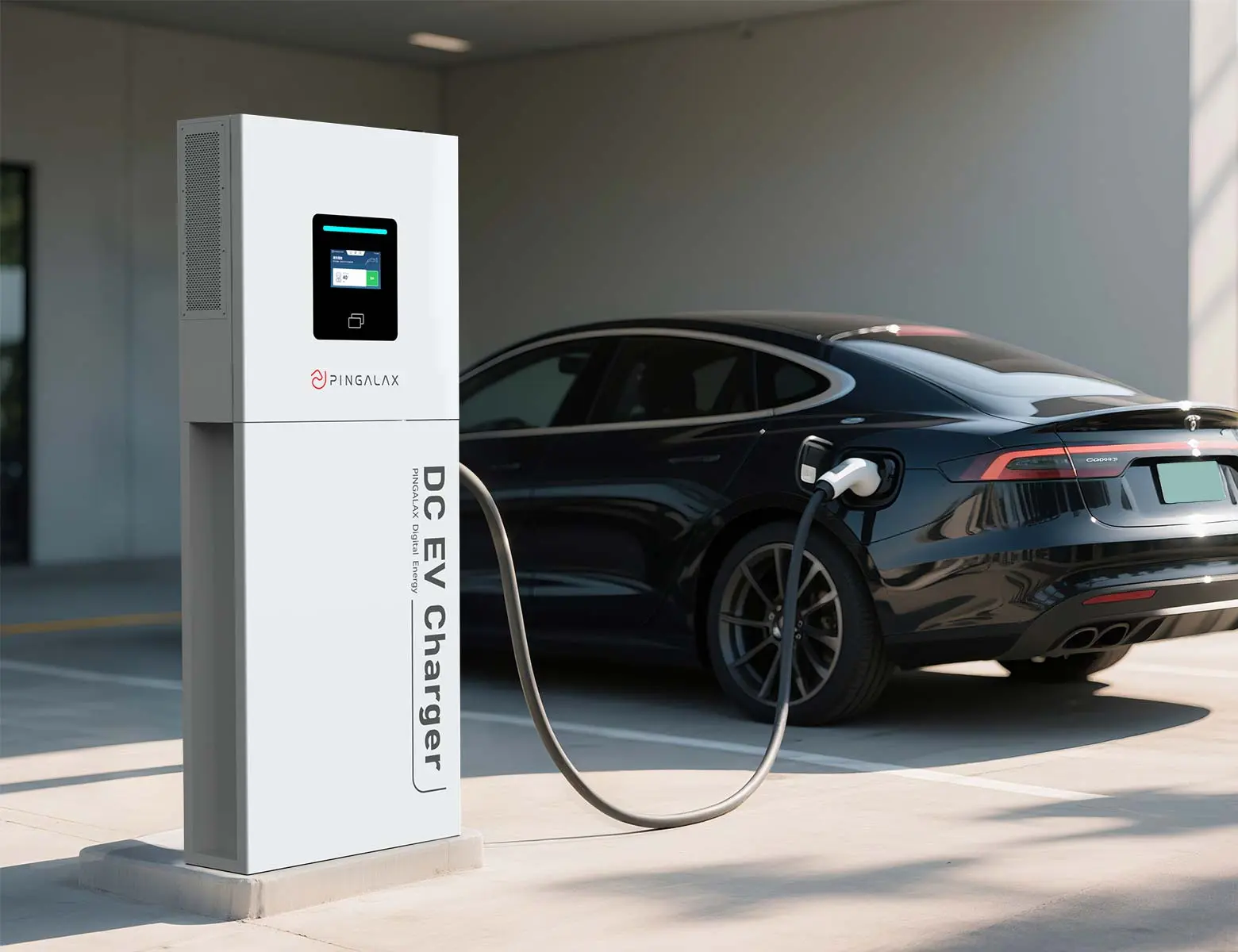

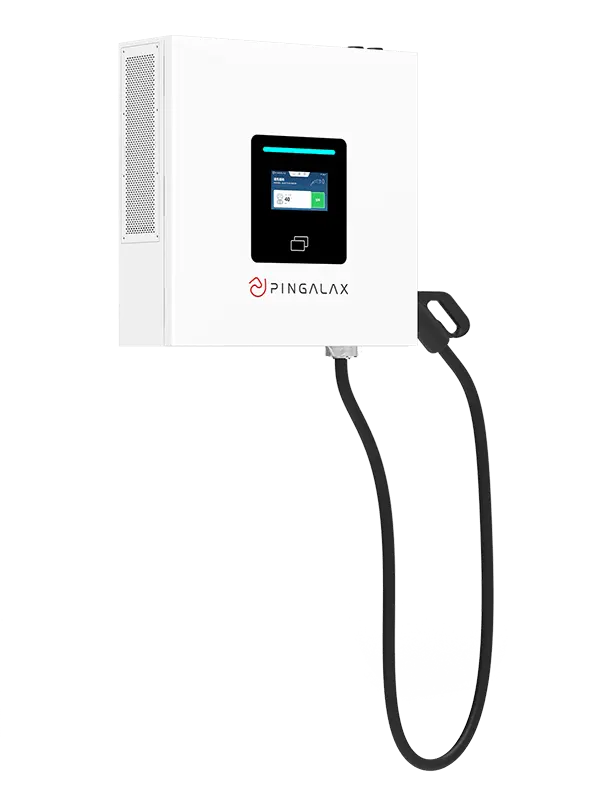

| Mounting Options | Wall-mounted / Pedestal-mounted | ||
| Efficiency | ≥95% | ||
| Power Cooling | Forced-air-cooled | ||
| Charging Port | GB/T, CCS2 | ||
| Input Characteristics | |||
| Input Voltage | GB: 3-phase 380VAC±15%, IEC: 3-phase 400VAC±10% | ||
| Input Frequency | 50/60Hz | ||
| Power Factor | ≥ 0.99(at loads above 50%) | ||
| Output Characteristics | |||
| Product Model | 0~67A | 0~100A | 0~125A |
| Output Voltage | 200~1000VDC | ||
| Certification and Reports | CE (TÜV), CB | ||
| Communication Protocol | OCPP 1.6, OCPP 2.0.1 and more | ||
60/80kw
0-250A
5m Cable
7 Touch
IP54，IK10
800kw MaxPower
≥95% Efficiency
600A
12 Max Number of Dispensers
IP65
120-240kw
0-250A
5m Cable
7
IP54，IK10
320-800kw
600A
IP65

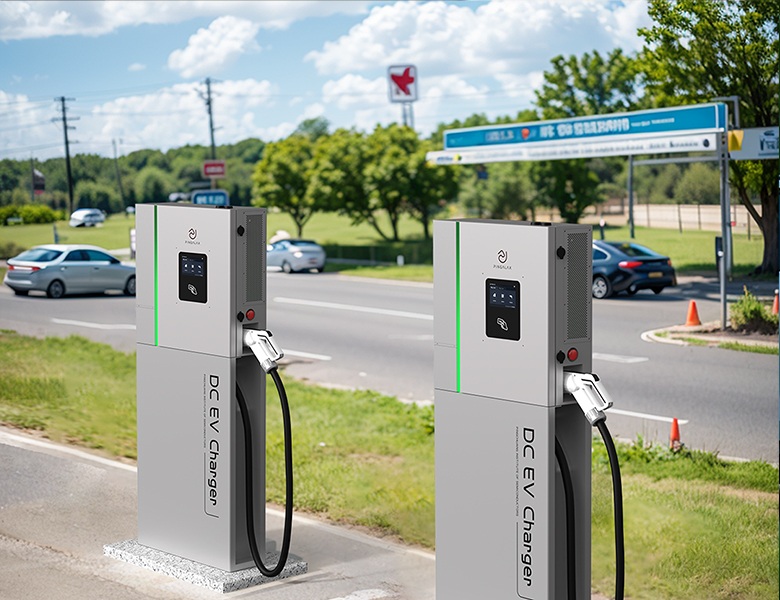

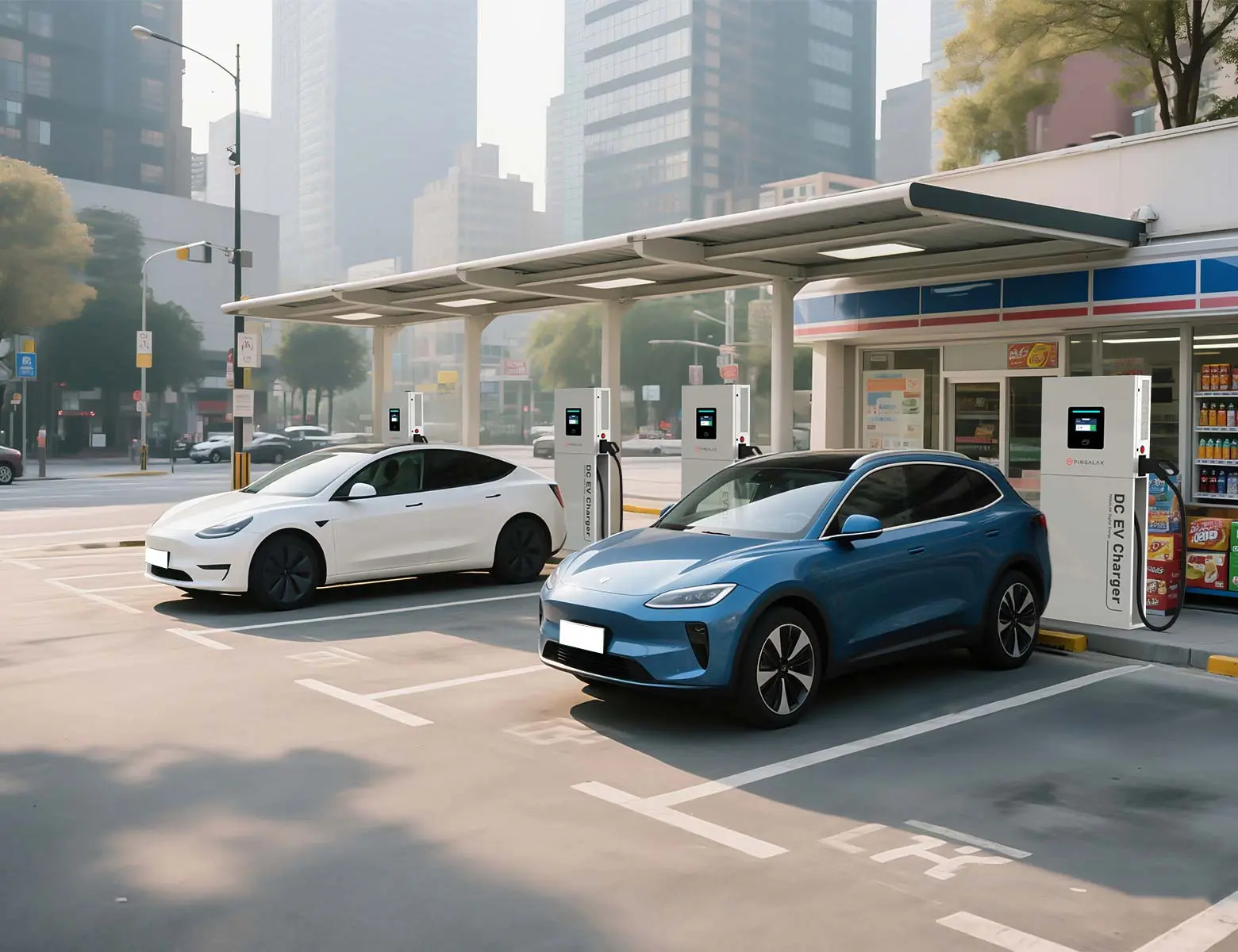

Public Charging
Fleet Operating
