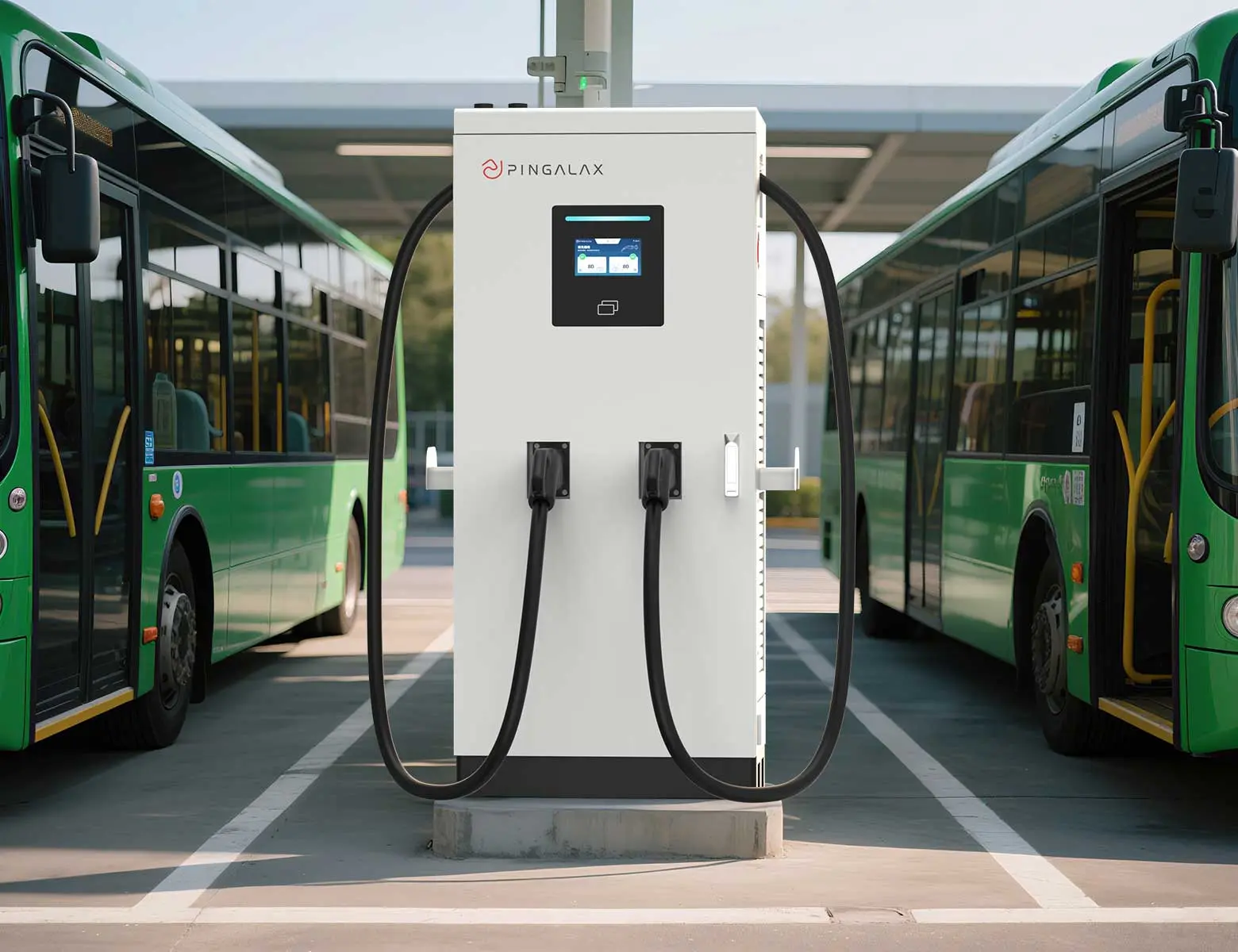

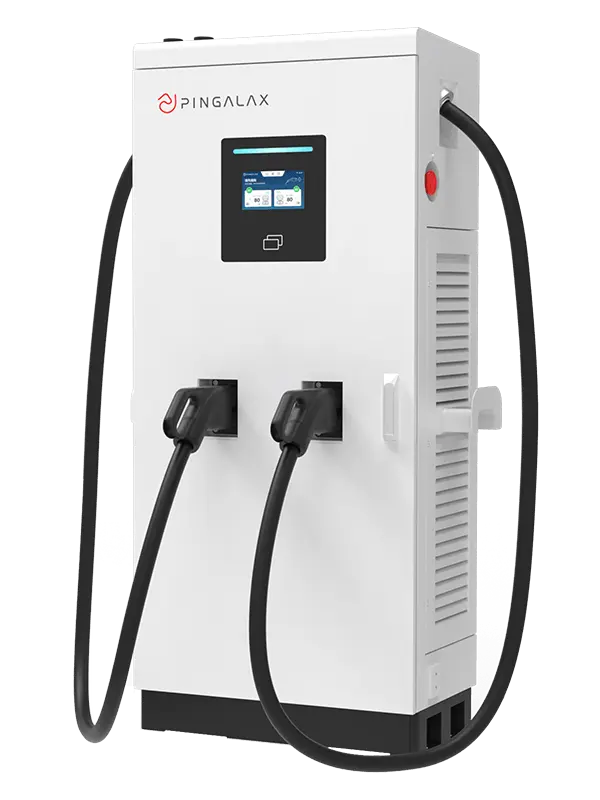

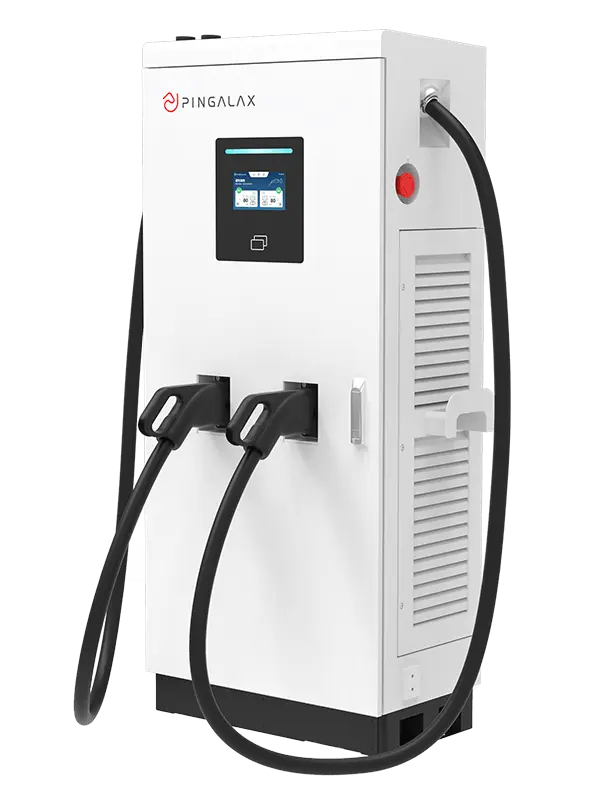

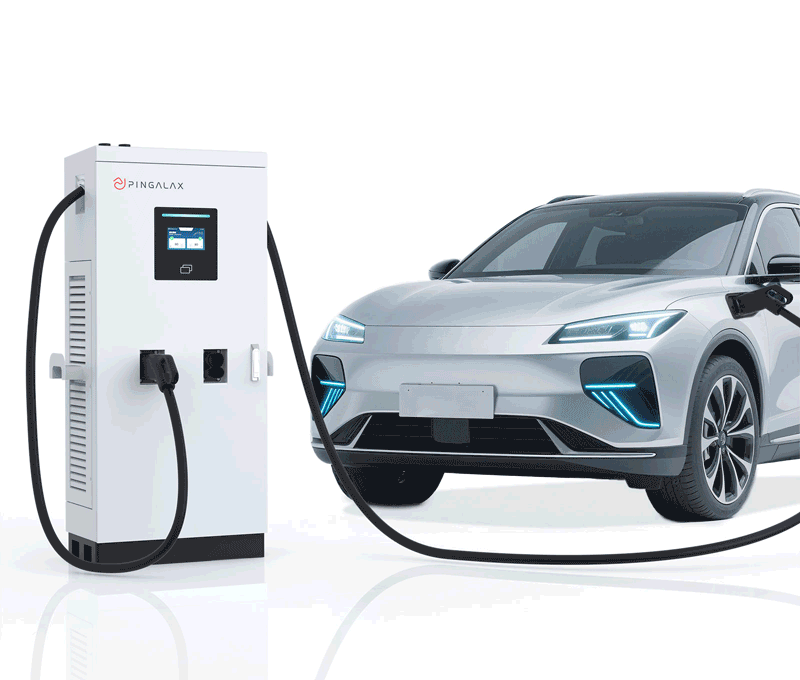

60-480kW Integrated DC Fast Charger,The PINGALAX Standard Series integrated DC fast charger is based on in-house developed.
60/80kw
0-250A
5m Cable
7 Touch
IP54，IK10

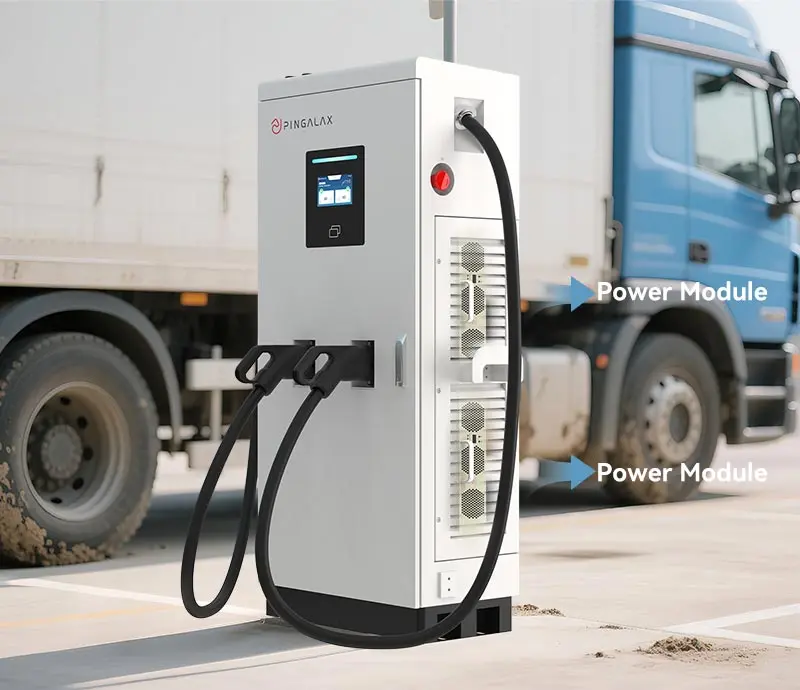

self-developed power modules
Support ground Lock

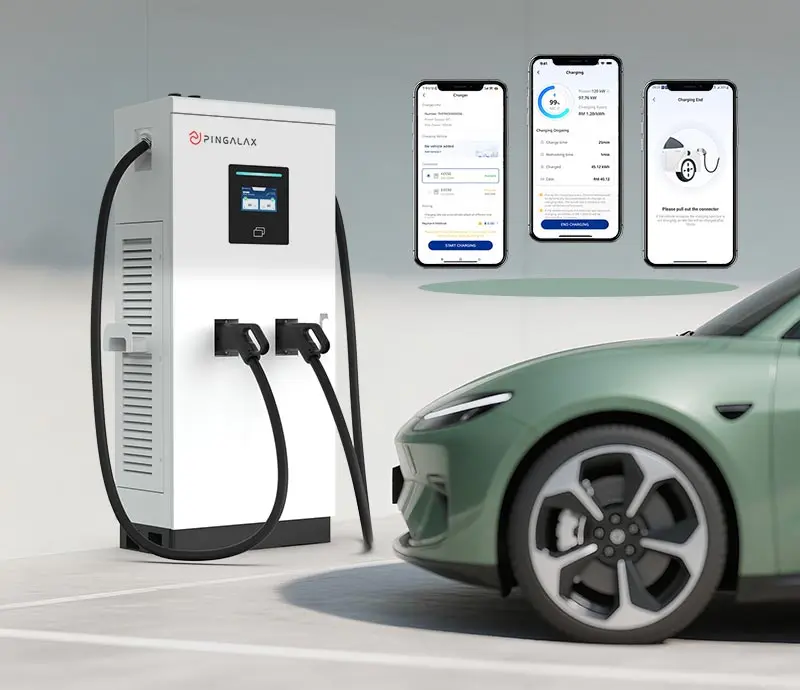

El Charge App for Payment
support DLB

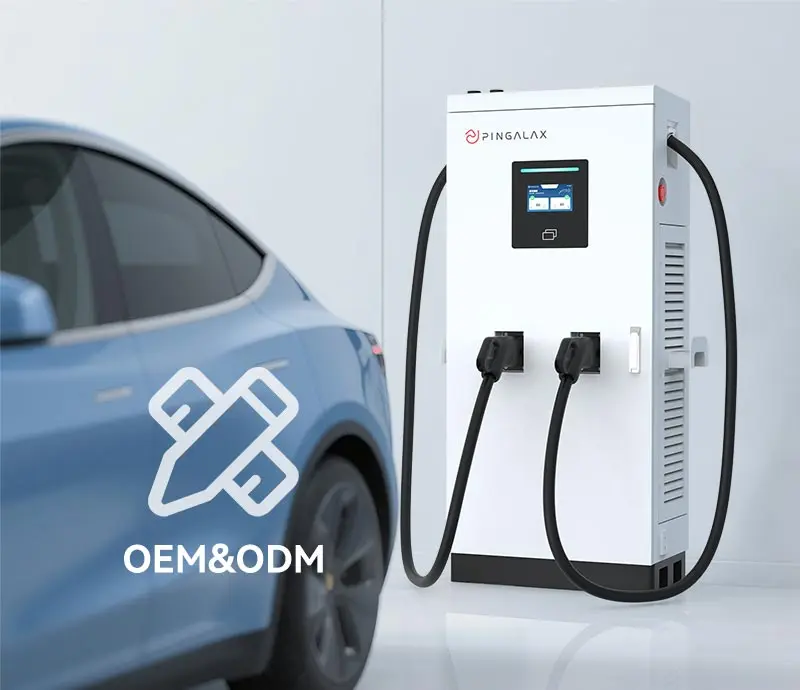

OEM & ODM Customization
Time saving=Faster charging speed,Reasonable design=fits in any space,Lower cost=More affordable with good quality,Safety=4-level protection,100% peace of mind.
| Product Information | ||
| Product Name | S60 | S80 |
| Power Rating | 60kW | 80kW |
Dimensions(w*d*h) | 700mm*400mm*1600mm | |
| Mounting Options | Pedestal Type | |
| Efficiency | >=95% | |
| ower Cooling | Forced-air-cooled | |
| Charging Port | GB/T,CCS2 and Mixed Connector | |
| Cable Length | 5m | |
| Input Characteristics | |||
| Input Voltage | GB: 3-phase 380VAC±15% IEC: 3-phase 400VAC±10% | ||
| Input Frequency | 50/60H | ||
| Power Factor | >=0.99(at loads above 50%) | ||
| Output Characteristics | |||
| Output Current | 0-200A | 0-250A | 0-300A |
| Output Voltage | 200~1000VDC | ||
OTA Upgrading
IP54
20~40kW
TUV CE
OCPP2.0.1
800kw MaxPower
≥95% Efficiency
600A
12 Max Number of Dispensers
IP65
120-240kw
0-250A
5m Cable
7
IP54，IK10
320-800kw
600A
IP65

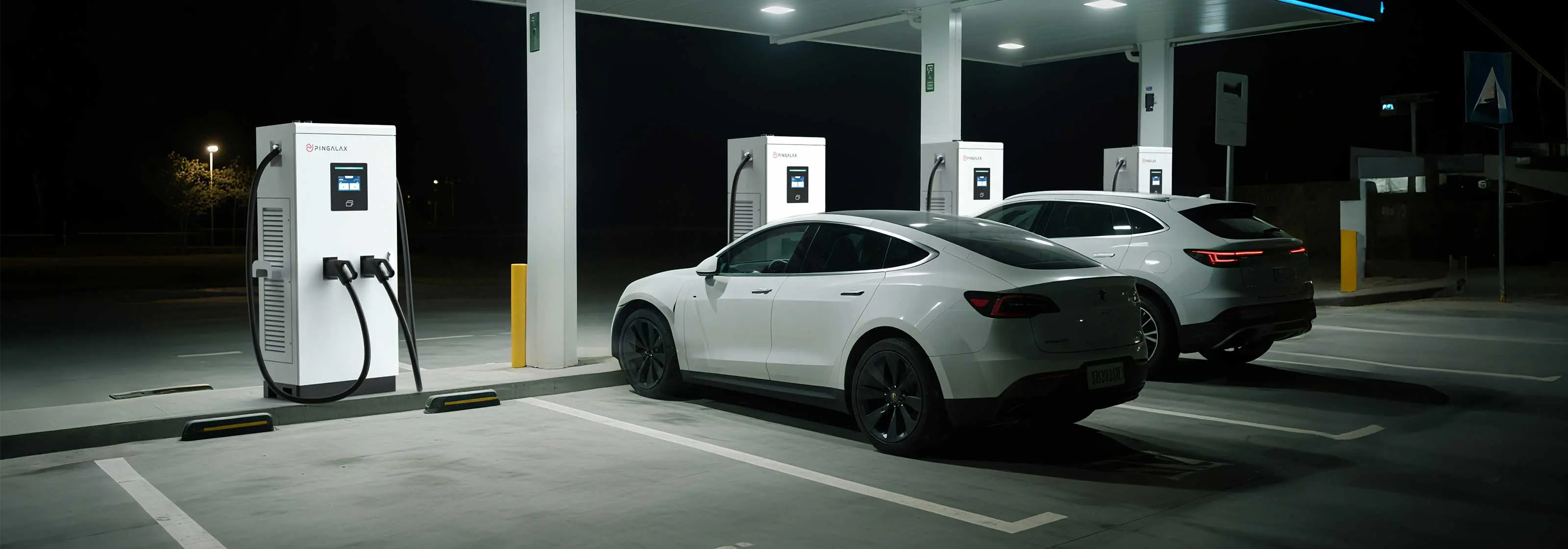

Public Charging
Fleet Operating
