EVSE Charging Stations: Installation Requirements Simplified

**EVSE Charging Stations: Installation Requirements Simplified**

Installing an Electric Vehicle Supply Equipment (EVSE) charging station involves several key considerations, from electrical capacity to local regulations. Whether for residential, commercial, or public use, understanding these requirements ensures a safe and efficient setup.

---

## **1. Electrical Infrastructure & Power Supply**

The most critical factor is **electrical compatibility**. Different charging levels have distinct power demands:

- **Level 1 (120V AC)** – Uses a standard household outlet (NEMA 5-15), requiring no major upgrades but offering slow charging (3–5 miles per hour).

- **Level 2 (240V AC)** – Needs a dedicated **40–100A circuit** (similar to an electric dryer or oven). A **NEMA 14-50 outlet** is common, or a hardwired connection for higher power.

- **DC Fast Charging (480V+)** – Requires **three-phase power**, high-capacity transformers, and commercial-grade electrical panels (typically 100–350 kW).

**Key Checks:**

✔ Verify panel capacity (e.g., 200A service for home Level 2).

✔ Assess voltage drop over long cable runs.

✔ Ensure proper grounding and surge protection.

---

## **2. Site Selection & Permitting**

### **Residential Installations**

- **Garage/Wall Mounting:** Must comply with **NEC Article 625** (clearance: 18" minimum from floor).

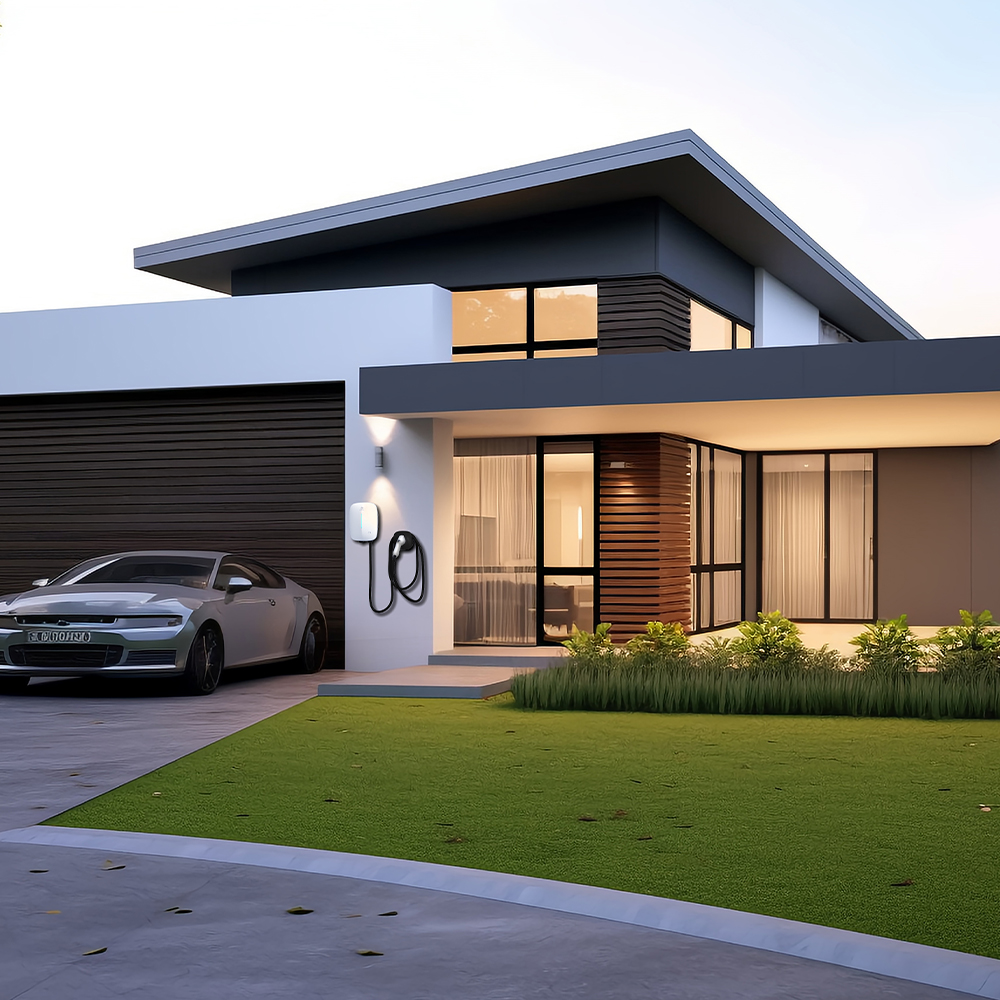

- **Outdoor Installations:** Requires **weatherproof (NEMA 3R or 4) enclosures** and GFCI protection.

### **Commercial/Public Stations**

- **Zoning Laws:** Some cities restrict charger placement near sidewalks or fuel stations.

- **ADA Compliance:** Accessible parking spaces must meet **width (96") and height (98")** requirements.

- **Permits:** Most jurisdictions require an **electrical permit** and inspection.

**Pro Tip:** Use **Plug & Charge-ready stations** (e.g., ChargePoint, Tesla Wall Connector) to simplify compliance.

---

## **3. Safety & Code Compliance**

- **National Electrical Code (NEC) Standards:**

  - **Overcurrent Protection:** Breakers must match EVSE specs (e.g., 50A for a 40A charger).

  - **Cable Management:** Avoid trip hazards with retractable cables or overhead mounts.

  - **Emergency Shutoff:** Required for commercial DC fast chargers.

- **UL Certification:** Only use **UL-listed or Energy Star-certified** equipment.

---

## **4. Smart Features & Networking**

Modern EVSE often includes:

- **Wi-Fi/Cellular Connectivity** for remote monitoring (e.g., Tesla app, ChargePoint dashboard).

- **Load Balancing** to prevent panel overload (e.g., sharing power between multiple chargers).

- **OCCP Compliance** for public-network integration (e.g., Electrify America roaming).

---

## **5. Cost & Incentives**

- **Residential:** $500–$2,000 (Level 2), including labor.

- **Commercial:** $5,000–$50,000+ (DC fast chargers).

- **Rebates:** Check **federal (30C tax credit), state (e.g., CA’s CALeVIP), and utility programs**.

---

### **Final Tips for a Smooth Installation**

1. **Hire a licensed electrician** for high-voltage work.

2. **Pre-wire for future upgrades** (e.g., conduit for additional chargers).

3. **Choose scalable solutions** (e.g., dual-port stations).

By following these guidelines, EVSE installation becomes straightforward, ensuring safety, compliance, and optimal performance.
